SPEEDTECH N54 TOP MOUNT KIT
SPEEDTECH N54 TOP MOUNT KIT
We've spent the last two years developing our top mount kit - design updates and validation ensures our customers get a reliable kit that performs.
Turbo position, Wastegate position, O2 sensor positions, Oil Drain and Oil Feed have all been refined for peak performance and maximizing clearances from hot parts (which is a common problem in other top mount kits).

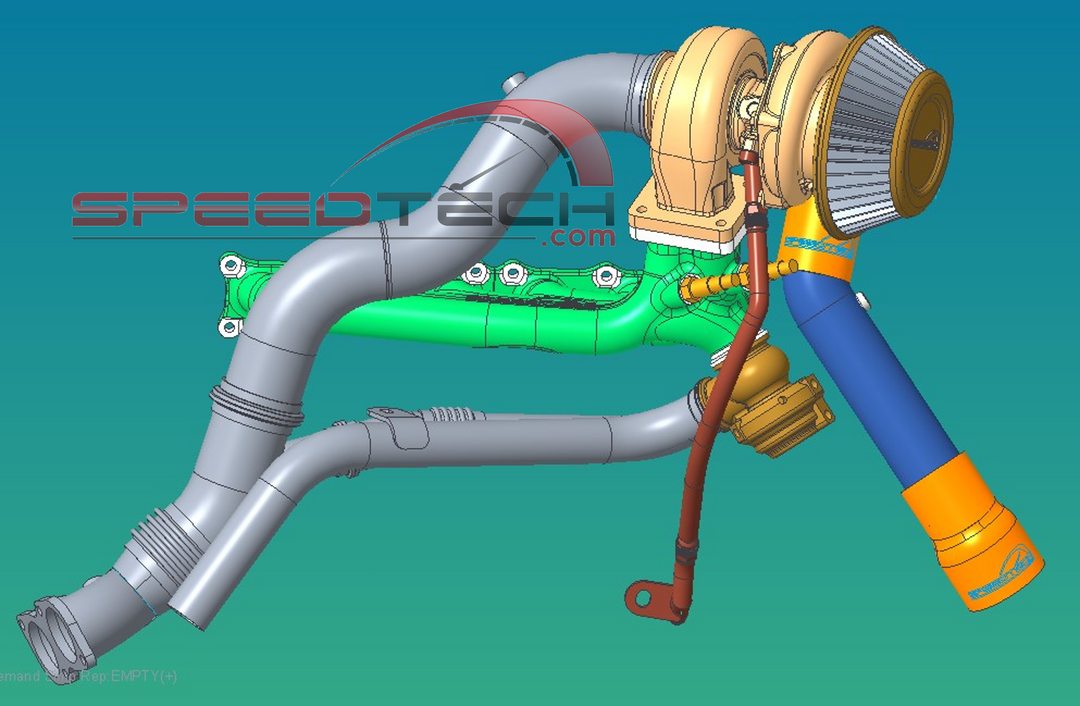

Starting from the ground up on a new twin-scroll manifold, multiple rounds of CFD and FEA were performed to ensure the best balance of quick spooling and high HP capability, along with durability.
Top mount kits, if not designed correctly, can wreak havoc on sensors and surrounding parts. We invested time into creating a kit that won't destroy O2 sensors.

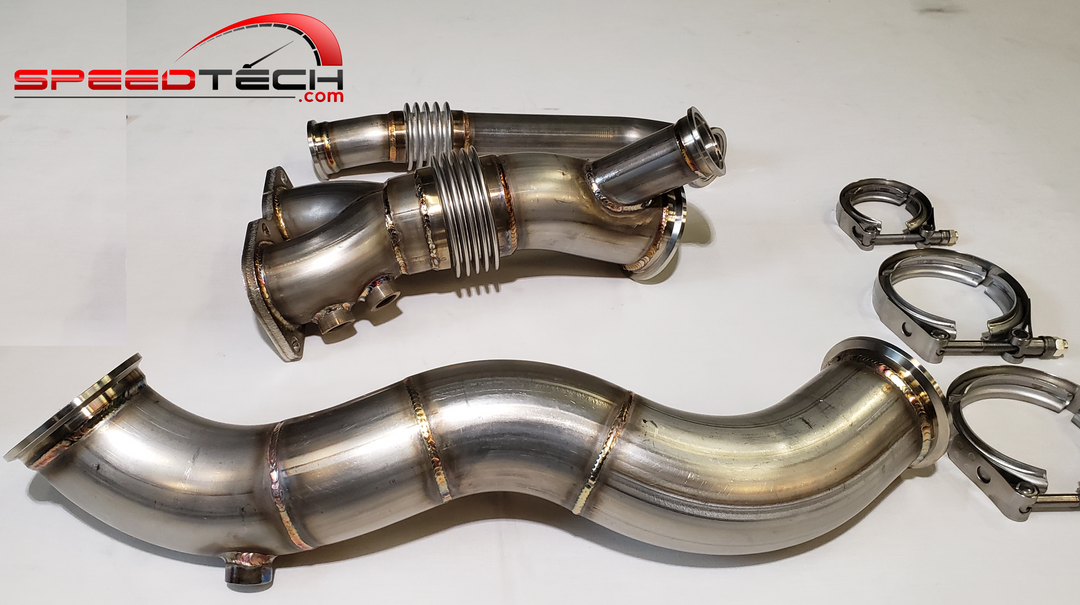

Stainless steel 2-piece tubing and wastegate dump pipe (recirculating or open dump), crafted with mandrel bends, tig welds, and cnc flanges.
Stainless braided oil feed hose, billet engine fitting with o-ring and bolt, and required fitting to the turbo oil feed

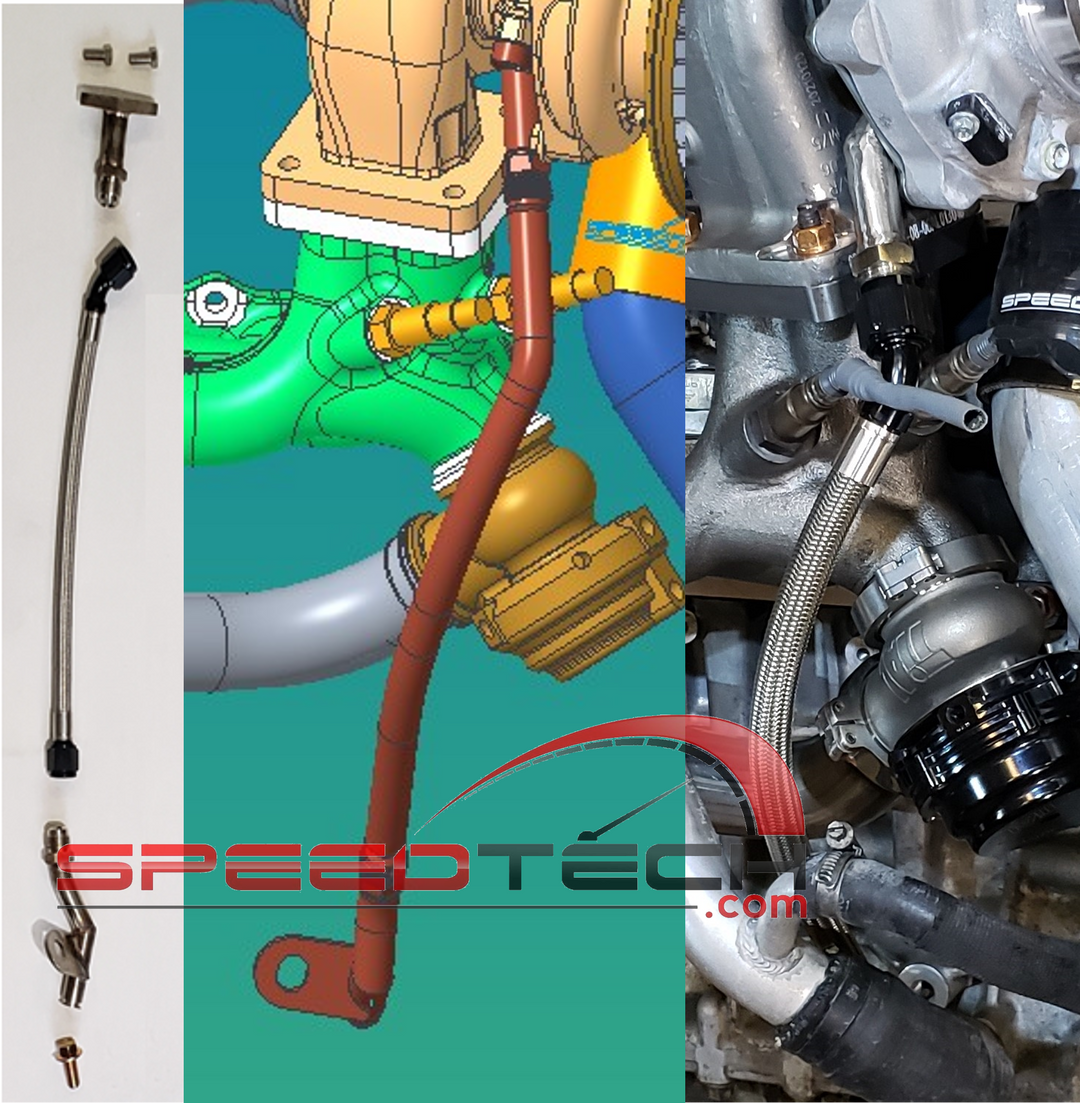

Seeing the failures of other top mount kits, we made a point to put upfront work into an engineered oil drain system.
Hot-side parts positioned to allow an oil drain path with ample clearance to hot parts.
Stainless braided -10AN line, and stainless AN tig welded fittings at the turbo and engine, ensure a leak-free and durable oil drain system. Also improves serviceability of the turbo for those of us that like to swap turbos.
Kit designed with ease of installation and commonized components in mind. Our layout allows use of stock motor mount, coolant manifold, hoses/pump.
Manifold design allows for easy access to hardware and kit configuration allows for easy installation and service of all components.
All oil and coolant connections at the turbo are AN fittings, making a turbo swap quick and easy.

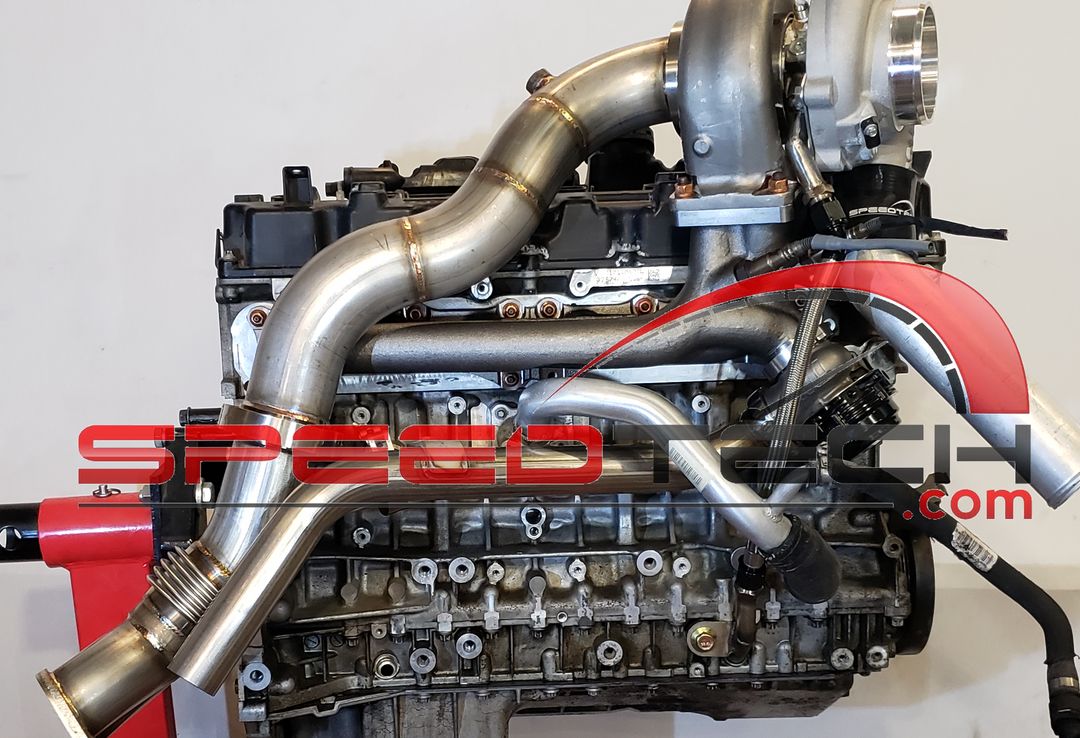

Our unique tubing/wastegate pipe configuration allows the customer to change from recirculating to open dump, and vice versa, with just the swap of the wastegate pipe. Cheap and easy upgrades.

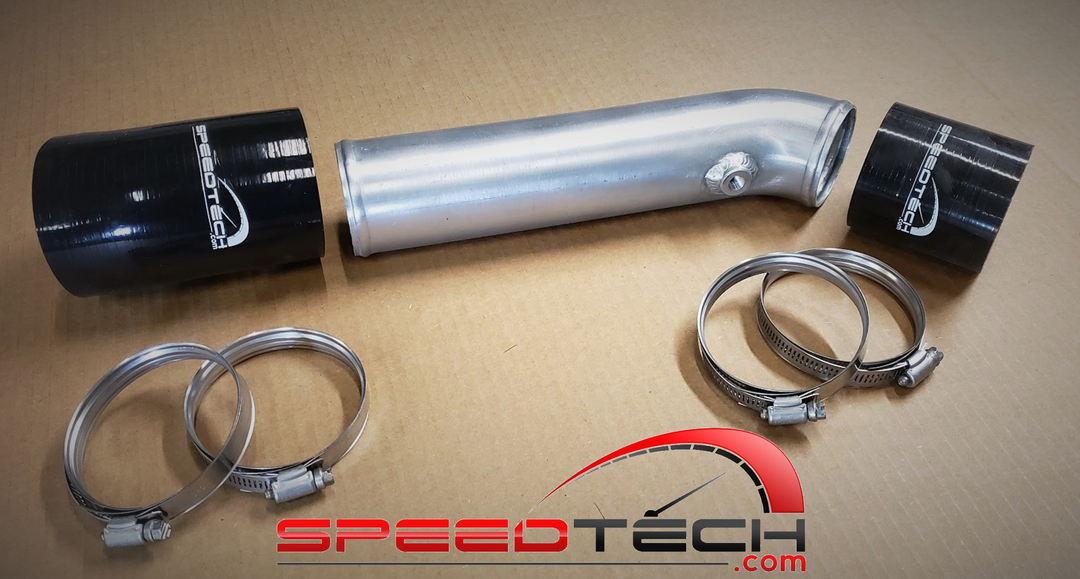

Mandrel formed 2.5" aluminum tubing with an 1/8npt bung, and custom silicone couplers at each end.
As it's crucial to use new hardware during a kit install and ensure correct length of studs, we include manifold to turbo studs, OEM manifold to head studs along with copper nuts with each kit for ease of installation.
Two patents pending - Utility patent on the unique configuration of the hot-side parts.
Also a separate design patent on the manifold itself.
SX-E : 252, 257, 362, 363, 364, 366 & 369
G SERIES: G30-770, G30-900, G35-900 & G35-1050
GTW: 3684R, 3884JB & 3884R
GTX GEN II: 3071R, 3076R, 3567R, 3582R & 3584RS
MFS JB: 6176 & 6776
GEN1: 5558, 5858, 5862, 6262 & 6266
GEN2: 5558, 5862, 6062, 6266, 6466, 6870 & 6875
6766 JB & 6766 BB
PSR: 6255G (G30 equivalent)
PSR: 5862G, 6862G (G35 equivalent)
PSR: 6466 GEN2, PSR PTE 6766
Engineered to perform, and to be seen.
Finish off your Speedtech Top Mount kit with one of our optional, custom designed turbo blanket valve cover blanket and/or silicone air filters.
For more information and/or to purchase one of our BMW Silicone Air Filters, Turbo Blankets, or Valve Cover Blankets, see below.

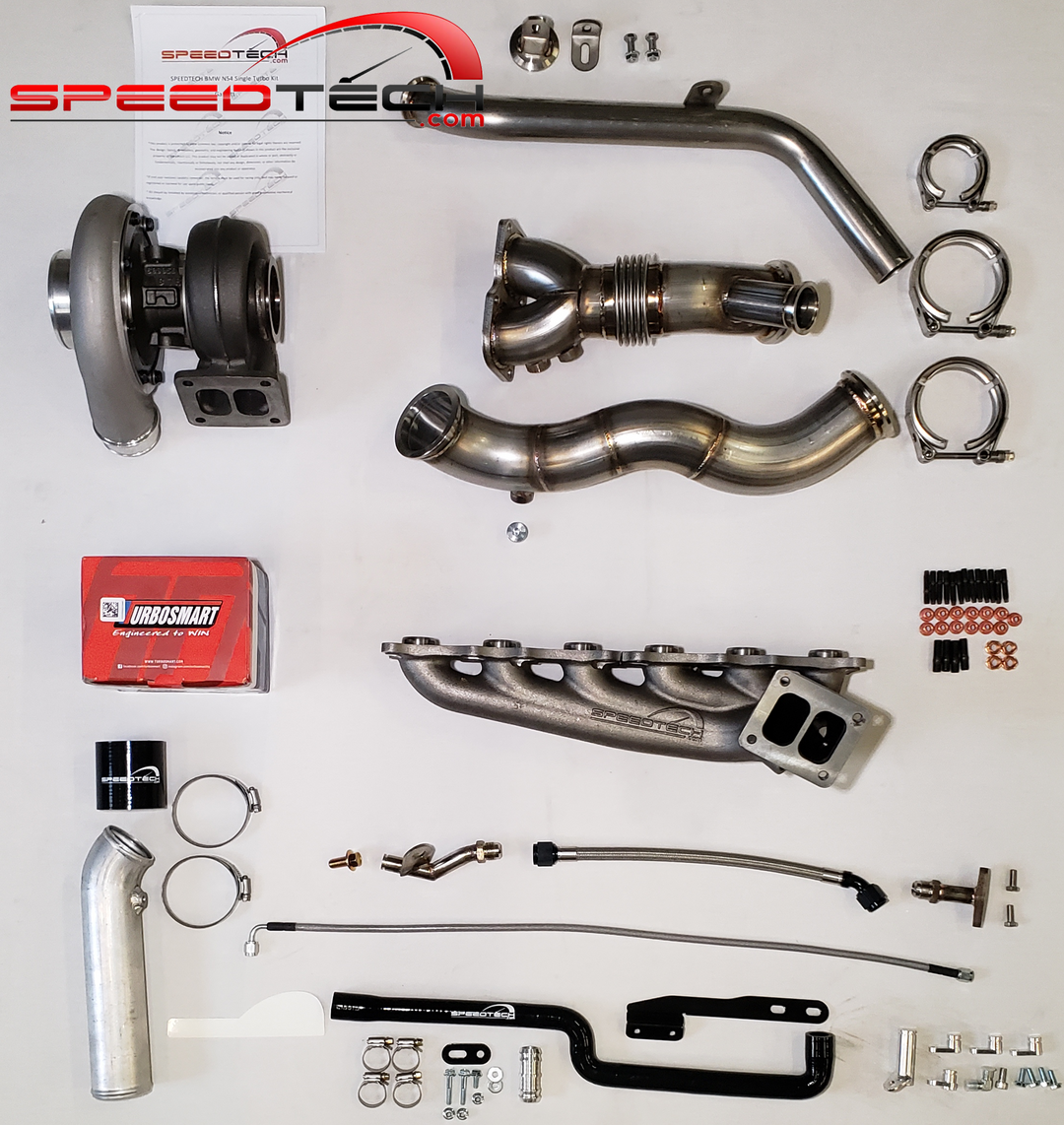

Currently verified on LHD E8X and E9X, both AWD and RWD
Turbo of your choice (T4 from Garrett, BorgWarner, Precision or VS Racing)

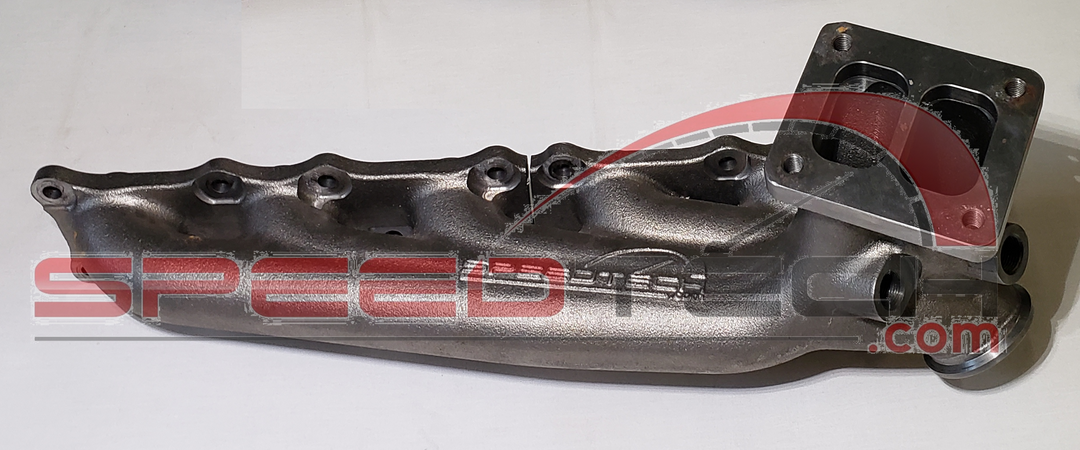

T4 Cast Manifold: Ceramic or Non-Ceramic Coated Manifold (divided for twin scroll), single wastegate port (fully divided), O2 bungs (N54 version)
TiAL MVR, Turbosmart Hypergate or VS Racing wastegate (you may also purchase the kit without a wastegate)
Tig welded 3” stainless steel 2-piece tubing
Tig welded 1.75” stainless steel wastegate pipe (recirculating or open dump)
Stainless braided oil feed hose & fittings
Stainless braided -10AN oil drain hose & stainless AN fittings
Billet aluminum oil and coolant block fittings and plugs
Aluminum Charge Pipe with silicone couplers for each end
Coolant Expansion Tank Relocation Kit
Stainless steel V-band clamps
Required fasteners and hose clamps
Full instructions with pictures
