SPEEDTECH
N55 F2X/F3X/F87 (NON-COMP)
TOP MOUNT KIT
SPEEDTECH
N55 F2X/F3X/F87 (NON-COMP)
TOP MOUNT KIT
Released in 2023, we spent two years developing our N55 F-Chassis Top Mount kit, and it shows. The result is a kit that is not only engineered to perform, but keep OEM-like reliability.
Turbo position, Wastegate position, Oil Drain and Oil Feed have all been analyzed for ideal placement in regards to performance, reliability, service/tool access, and more.

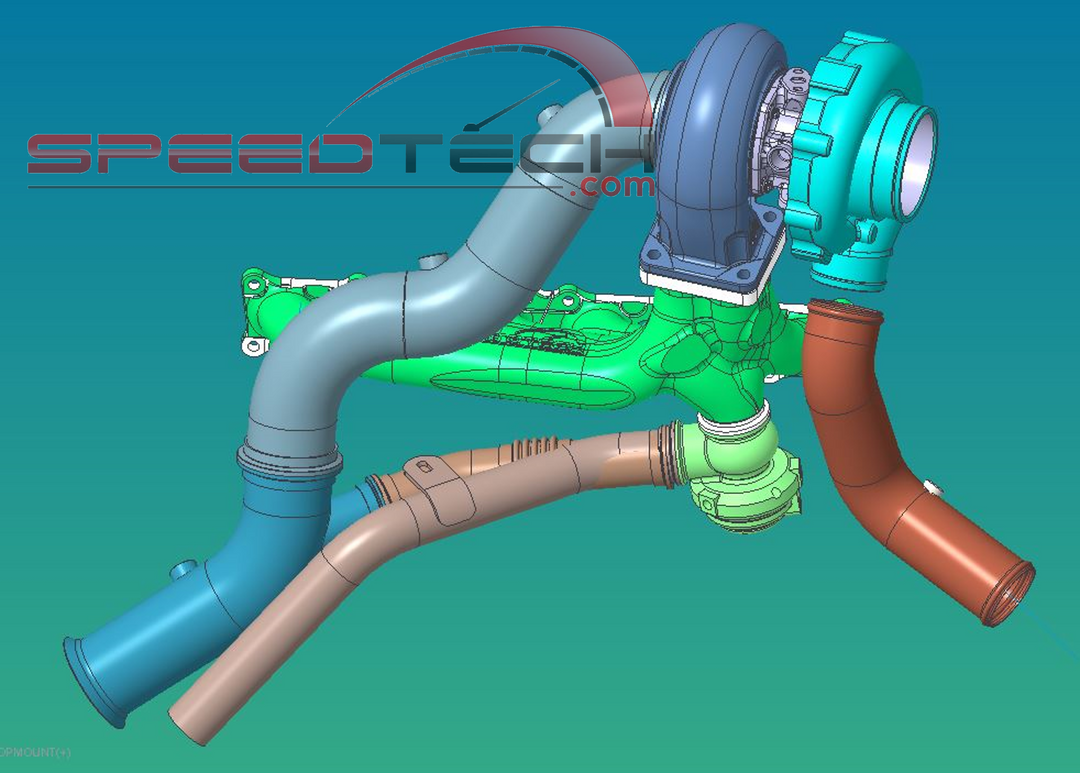

Building off our experience from our other BMW kits, this N55 top mount manifold hits all the marks. Twin-scroll, CFD flow analyzed, cast manifold to ensure the best balance of quick spooling and high HP capability, along with durability. All interfacing features are machined, creating perfectly flat mounting flanges, with very tight tolerances for a perfect fit on every kit. No other competitors have the engineering skillsets to compete with us here.

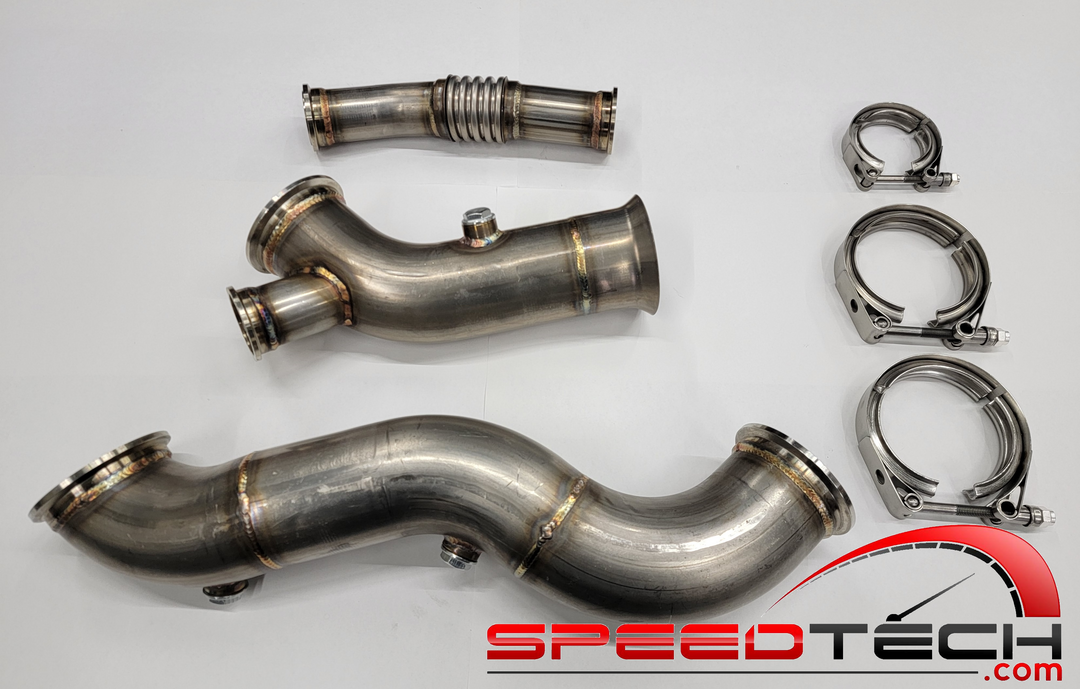

Stainless steel 2-piece tubing and wastegate dump pipe (recirculating or open dump), crafted with mandrel bends, tig welds, and cnc flanges.

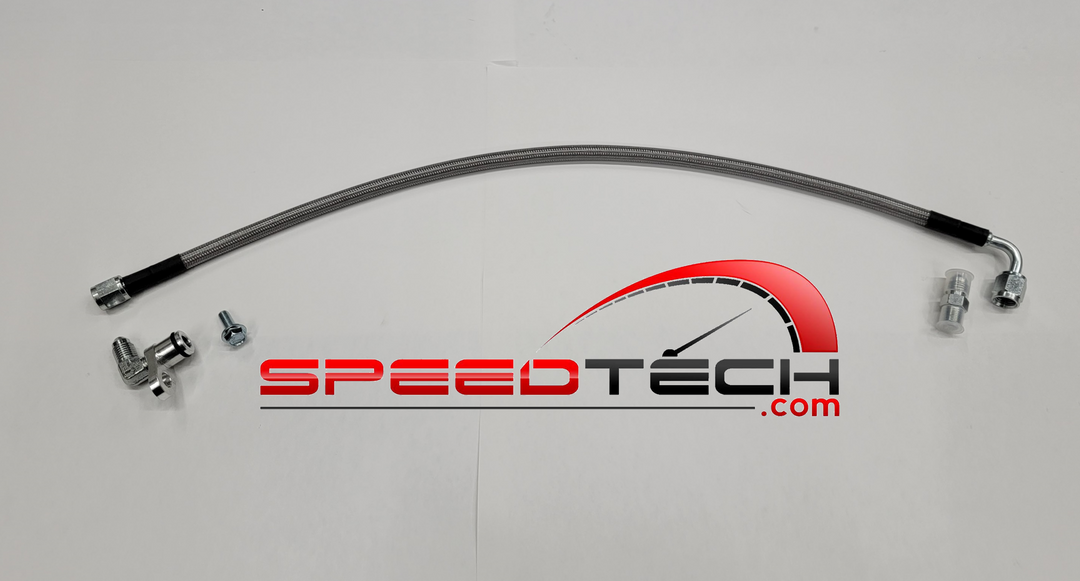

Stainless braided oil feed hose, billet engine fitting with o-ring and bolt, and required fitting to the turbo oil feed
Just like our other BMW kits, we made a point to put upfront work into an engineered oil drain system.
Hot-side parts positioned to allow a smooth oil drain path with ample clearance to hot parts.
Stainless braided -10AN line, and stainless AN tig welded fittings at the turbo and engine, ensure a leak-free and durable oil drain system. Also improves serviceability of the turbo for those of us that like to swap turbos.

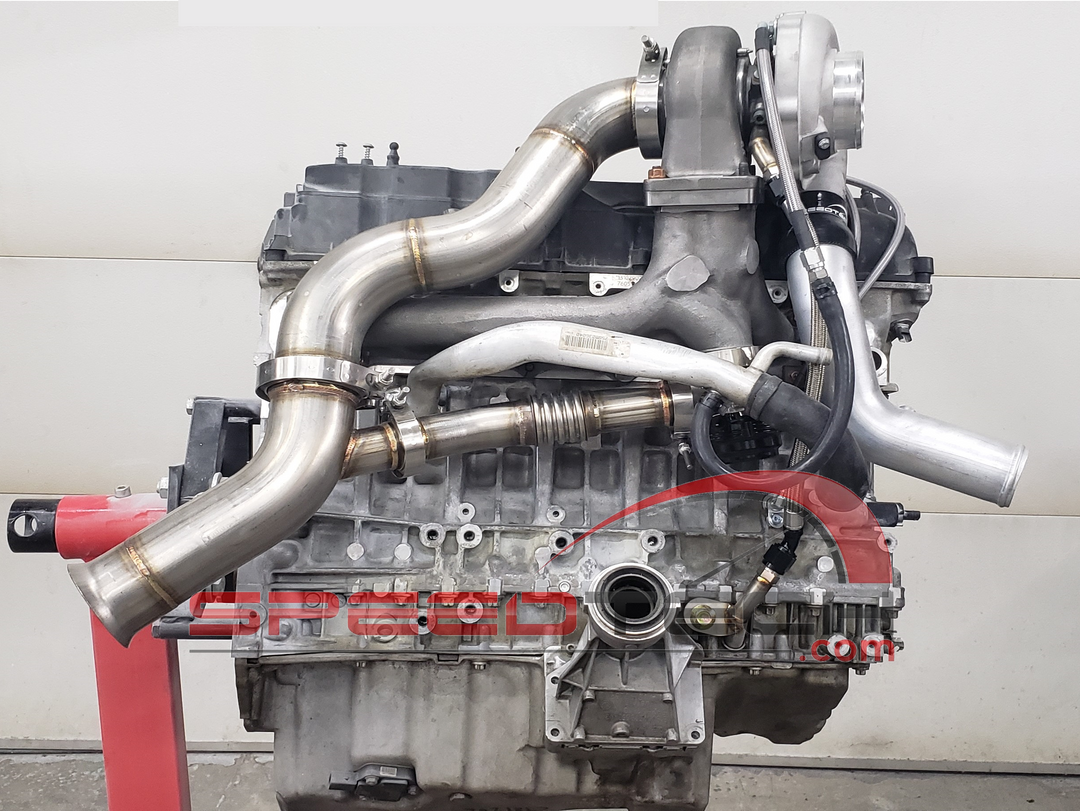

Kit designed with ease of installation and commonized components in mind. Our layout allows use of stock motor mount, coolant manifold, hoses/pump.
Manifold design allows for easy access to hardware and kit configuration allows for easy installation and service of all components.

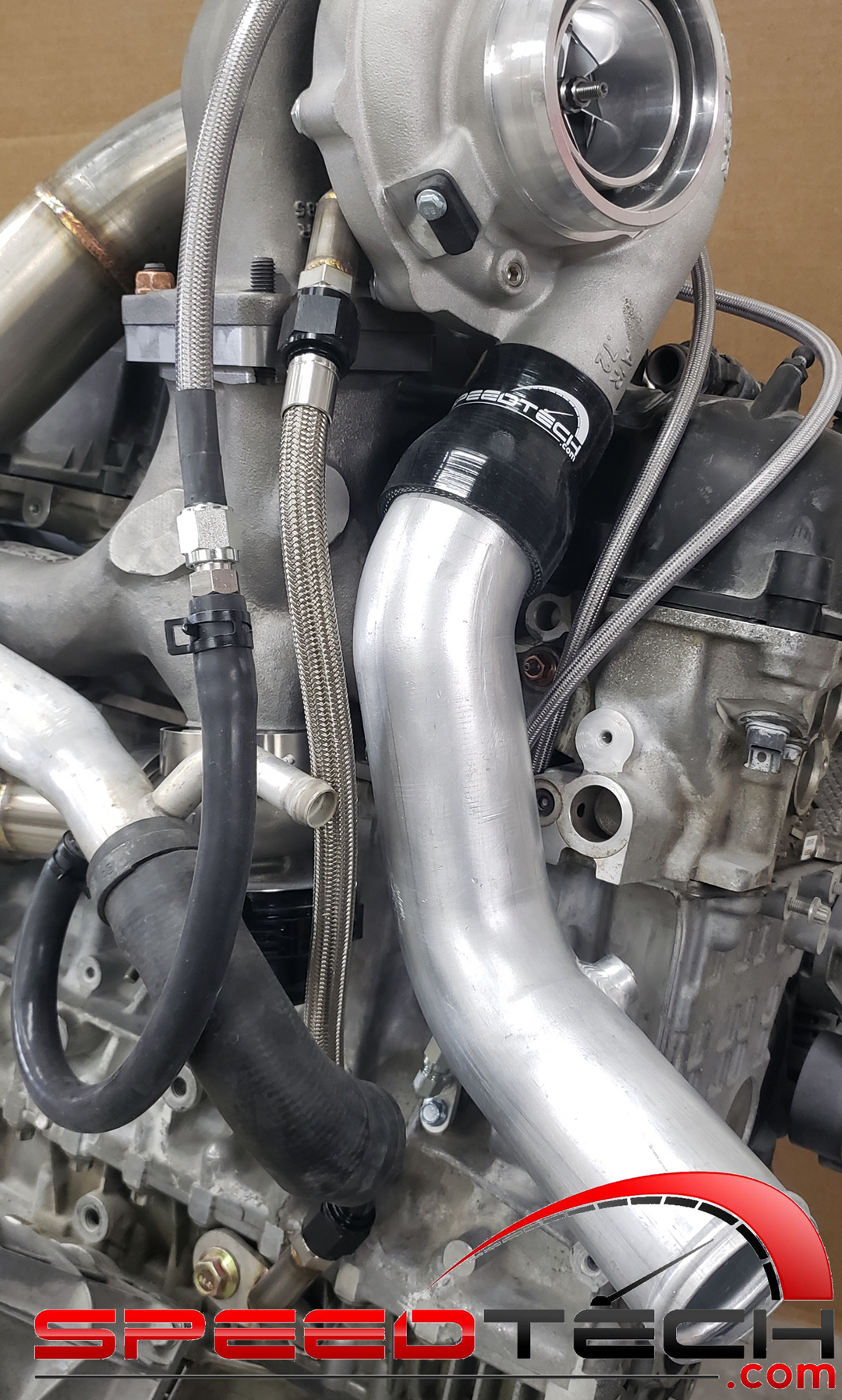

All oil and coolant connections at the turbo are AN fittings, making a turbo swap quick and easy.
Our unique tubing/wastegate pipe configuration allows the customer to change from recirculating to open dump, and vice versa, with just the swap of the wastegate pipe. Cheap and easy upgrades.

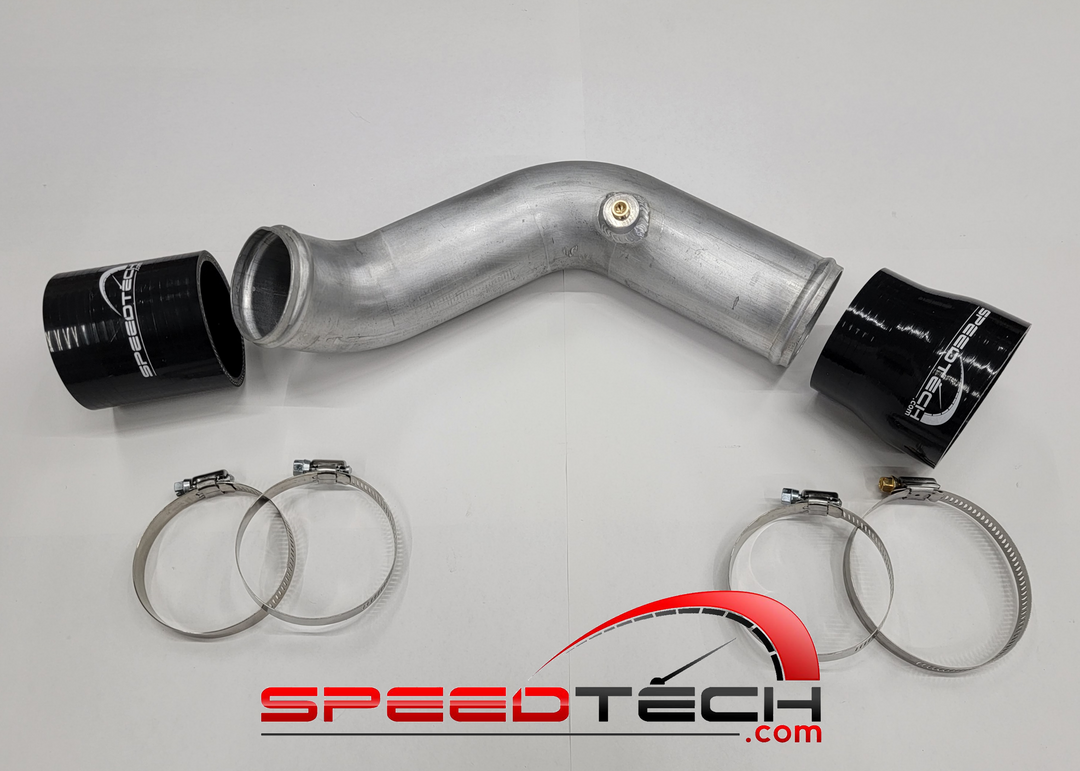

Mandrel formed 2.5" aluminum tubing with an 1/8npt bung, and custom silicone couplers at each end.

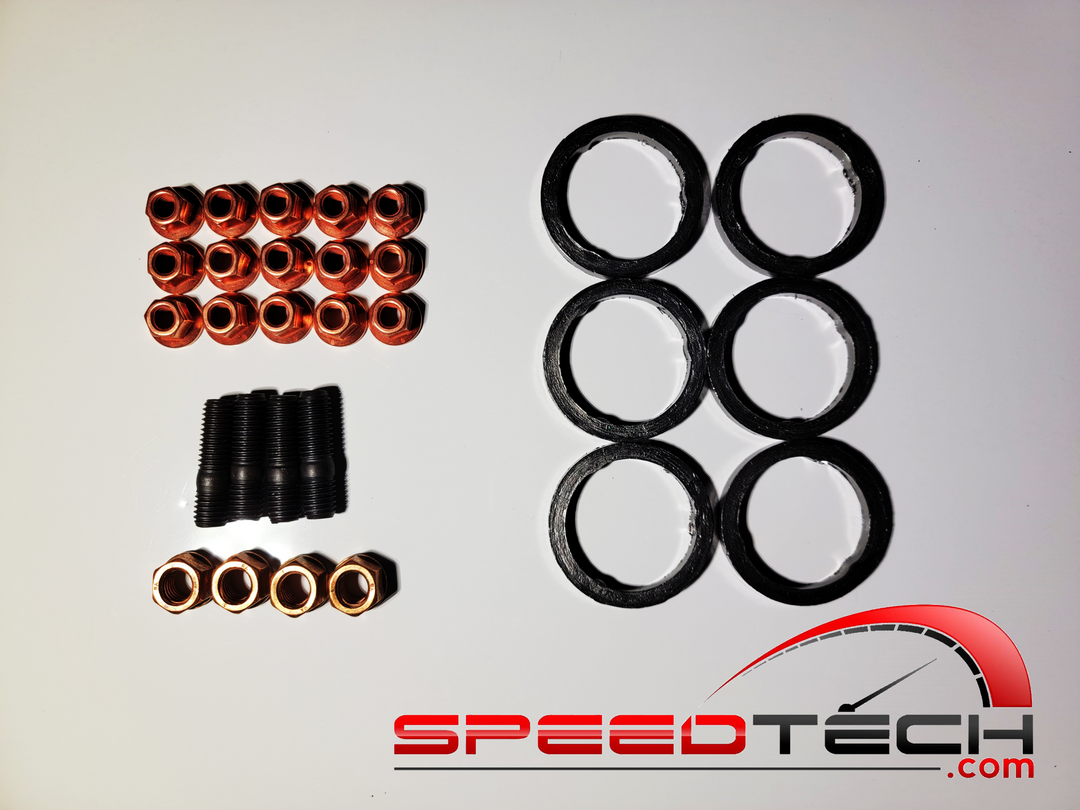

As it's crucial to use new hardware during a kit install, we include manifold to turbo studs, manifold to turbo copper exhaust nuts, and manifold (donut) gaskets with each N55 F-Chassis Top Mount Kit for ease of installation.
Two patents pending - Utility patent on the unique configuration of the hot-side parts.
Also a separate design patent on the manifold itself.
SX-E : 252, 257
G SERIES: G30-770, G30-900, G35-900 & G35-1050
GTW: 3684R, 3884JB & 3884R
MFS JB: 6176 & 6776
GEN1: 5558, 5858, 5862, 6262 & 6266
GEN2: 5558, 5862, 6062, 6266, 6466, 6870 & 6875
NEXT GEN: 6266, 6466, 6870
PSR: 5862G & 6255G (G30 equivalent)
PSR: 6262G, 6862G (G35 equivalent)
PSR 6266, 6466 & 6766
Finish off your Speedtech Top Mount kit with one of our optional, custom designed turbo blankets or silicone air filters.

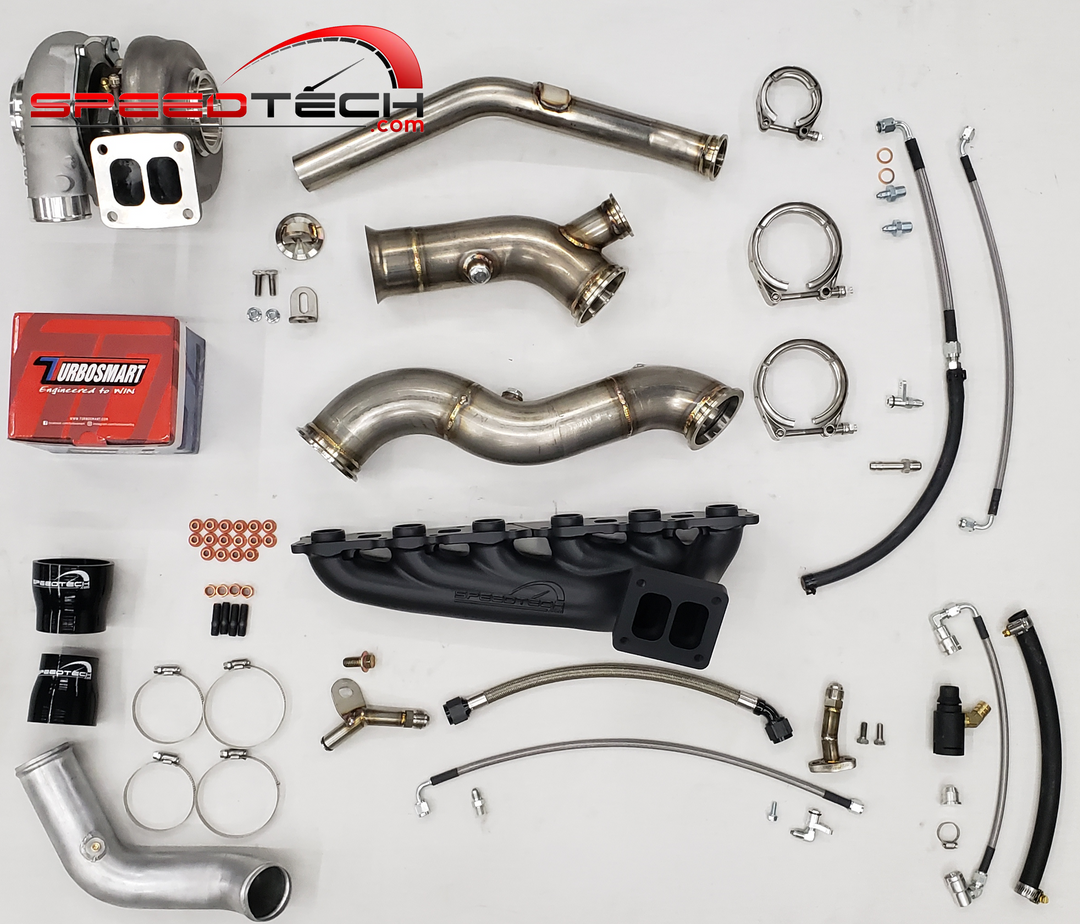

FITMENT VERIFIED ON: F2X/F3X & F87 (Non-competition)
Turbo of your choice (T4 from Garrett, BorgWarner, Precision, Pulsar)

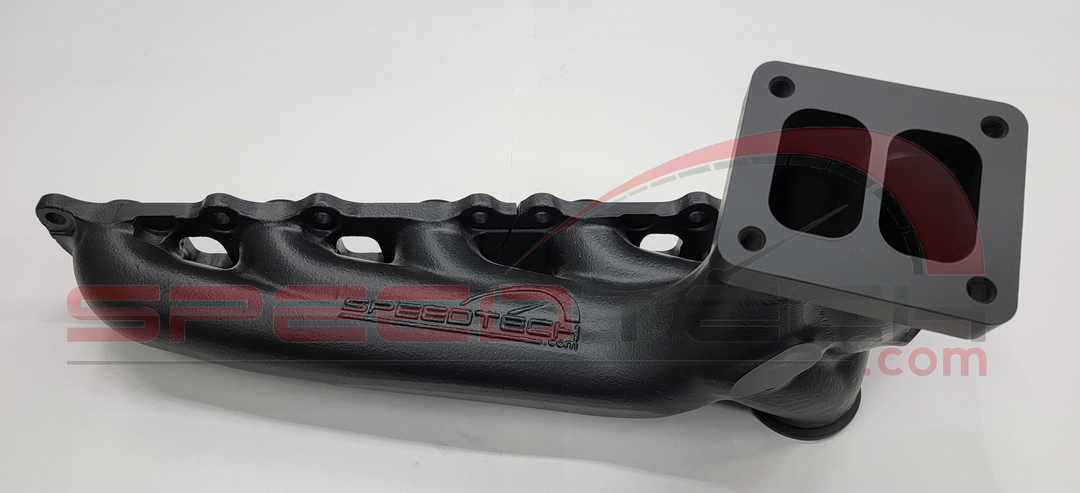

T4 Cast Manifold: Ceramic or Non-Ceramic Coated Manifold (divided for twin scroll), single wastegate port (fully divided)
TiAL MVR or Turbosmart Hypergate (you may also purchase the kit without a wastegate and source your own)
Tig welded 3” stainless steel 2-piece tubing
Tig welded 1.75” stainless steel wastegate pipe (recirculating or open dump)
Stainless braided oil feed hose & fittings
Stainless braided -10AN oil drain hose & stainless AN fittings
Billet aluminum oil and coolant block fittings and plug (non-water cooled turbo only)
Aluminum Charge Pipe with silicone couplers for each end
Coolant Expansion Tank Relocation Kit
Stainless steel V-band clamps
Required fasteners and hose clamps
Full instructions with pictures
